Timothy S. Johnston Builds Star Trek TOS’s Shuttlecraft Galileo POL 909

… otherwise known as NCC-1701/7, as seen in the classic Star Trek: TOS episode The Galileo Seven.

I loved making this scale model, despite the catastrophic failure of my first attempt.

The First Failure

Yes, you read that correctly. My first attempt failed so spectacularly, that I had to secure a second model kit and start all over from the beginning. The reason? I used a primer that was more suited to furniture than scale models. Combined with high humidity, when I painted the hull, the final paint layer cracked horribly and resembled alligator skin. I forged on and completed the model, but realized in frustration that it was a total failure. You can see the hull of that model here:

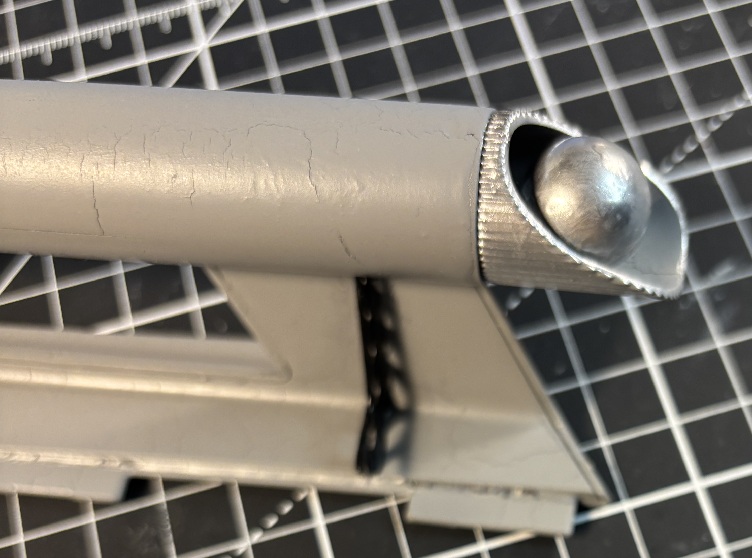

Version 1, Port Nacelle, Catastrophic Failure

I purchased another kit and started on it immediately after.

And despite this — despite making two shuttles back to back — I feel the urge to immediately make a third one right now. I had that much fun making it.

The way the kit is designed, the way the hull fits together to eliminate seams, the way the pieces are designed to be interlocking to provide total accuracy in the final model, is brilliant. Huge kudos to the designer. I wish every kit were designed so perfectly.

The Box and Contents

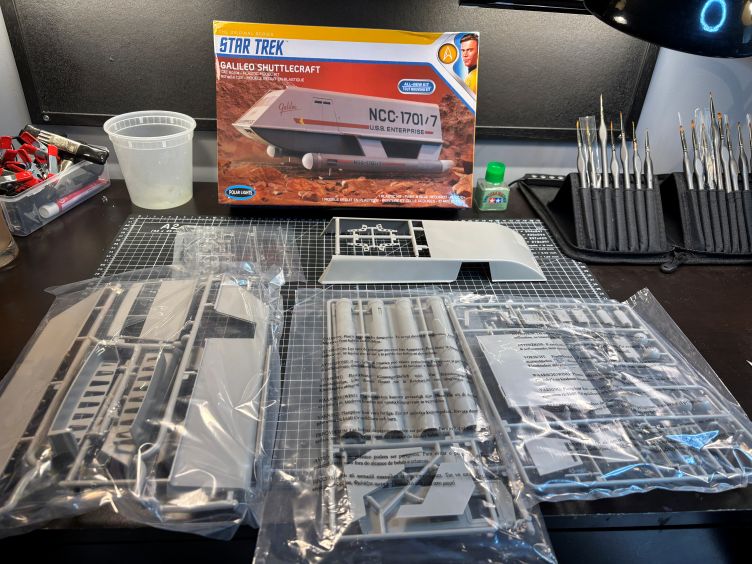

Here are the contents of the box:

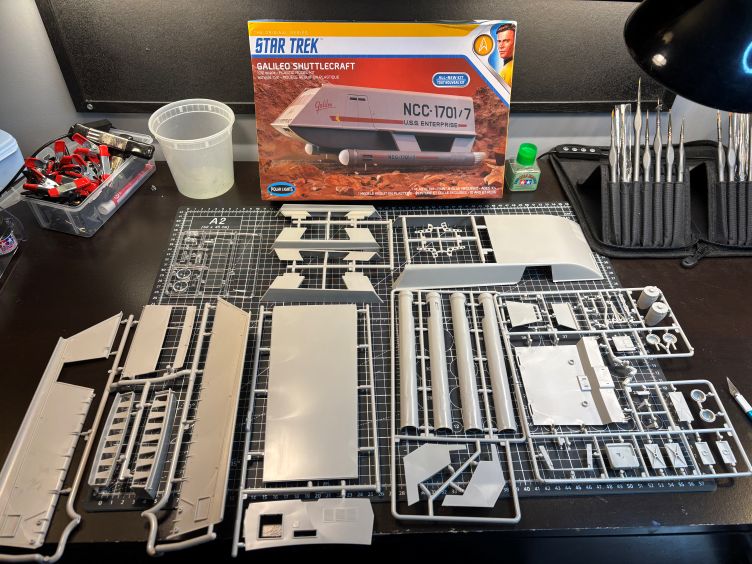

And here are all the pieces on my workbench. Note the transparent pieces in the top left, for those who want to light their models, or create the interior so it can be viewed from outside. I decided not to create the interior (with the figures and controls), although you can purchase that kit too, either separately or together with the exterior in the same kit.

The Assembly

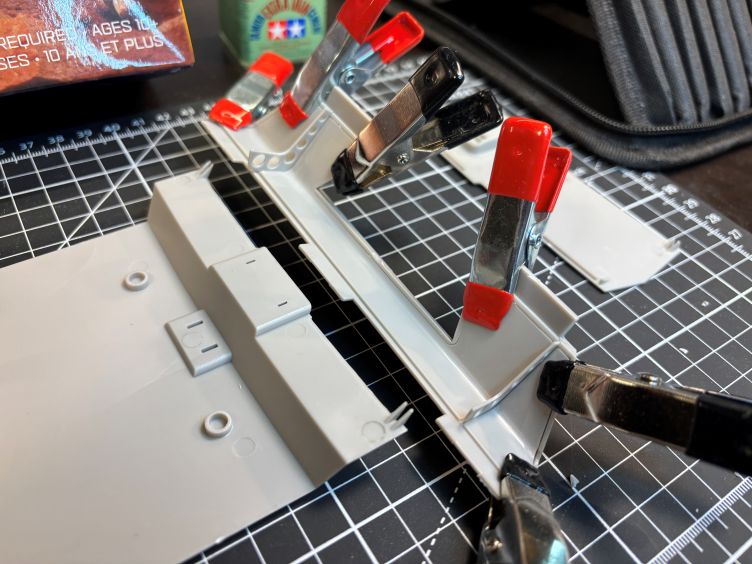

Here are the major pieces, starting to come together. Clamps are used to keep the pieces tight while the glue cures overnight.

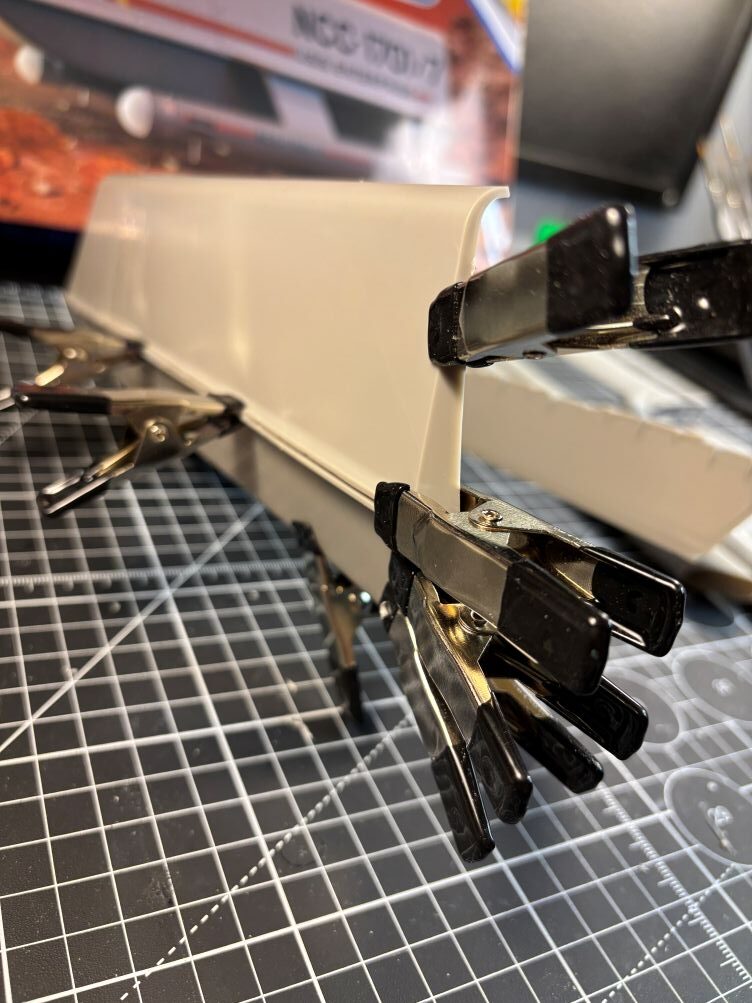

Here is the port side hull, clamped and curing.

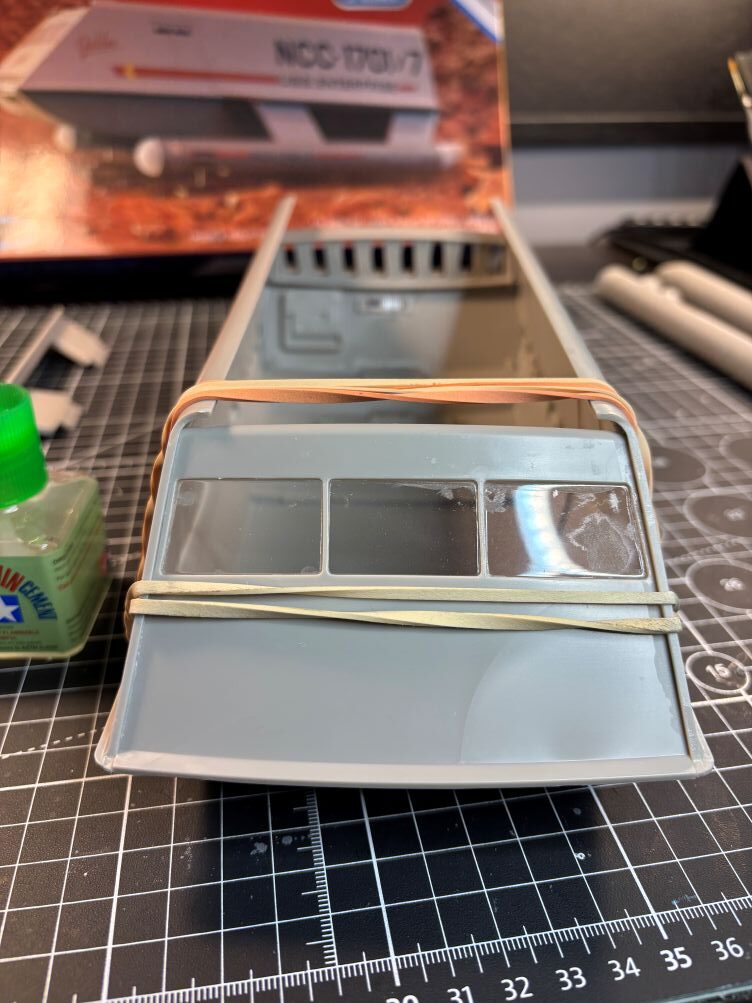

Here’s the hull, now together. I used elastic bands to keep everything tight while the glue cured. The front viewscreen is in; it’ll be primed in grey and then eventually painted black. Note the two nacelles in the background, together and also drying.

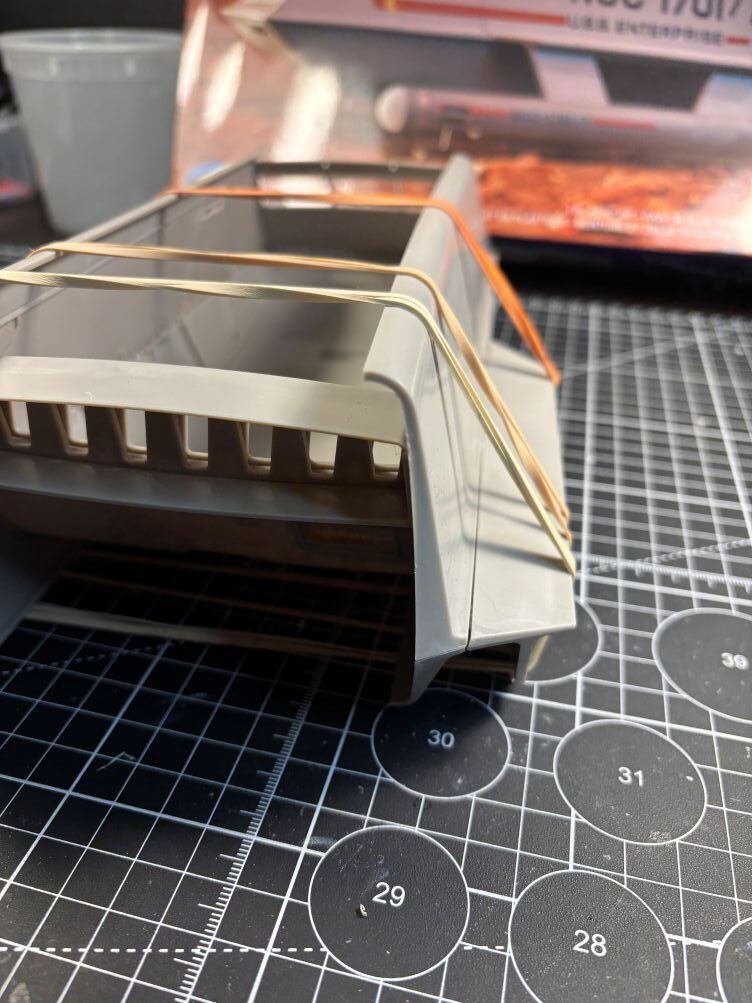

Here’s the shuttle’s aft. The engine grill has been inserted. Eventually it’ll be black. The impulse engine will be metallic red in colour.

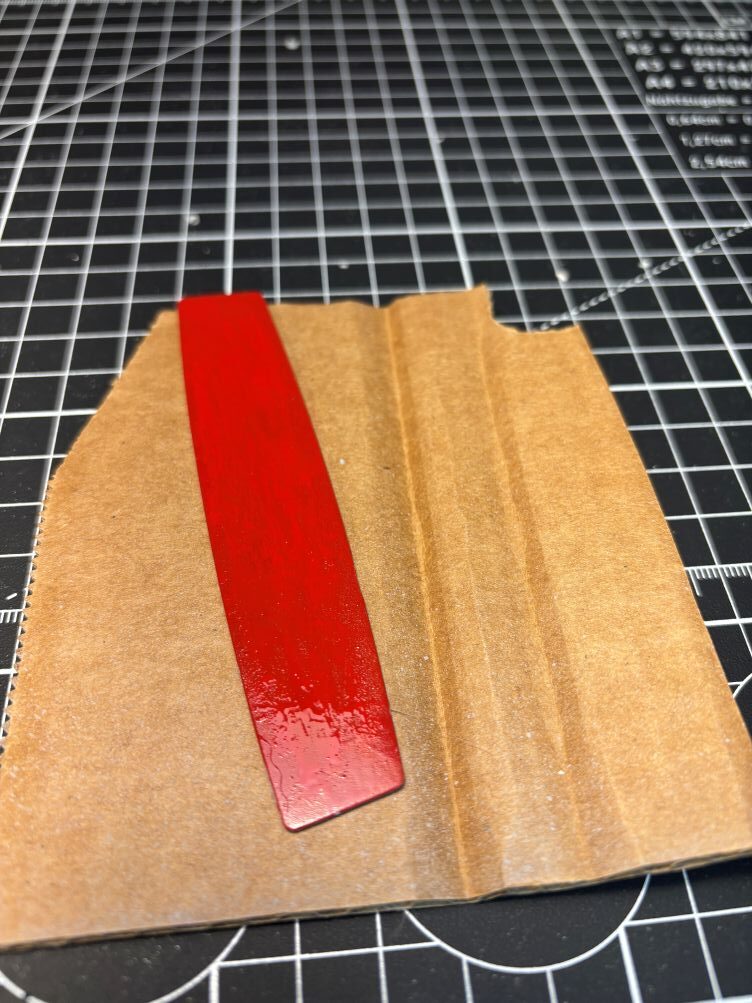

This is the impulse engine. I used Testors metallic red, the same as the bussard collectors in all my other Trek completed scale models.

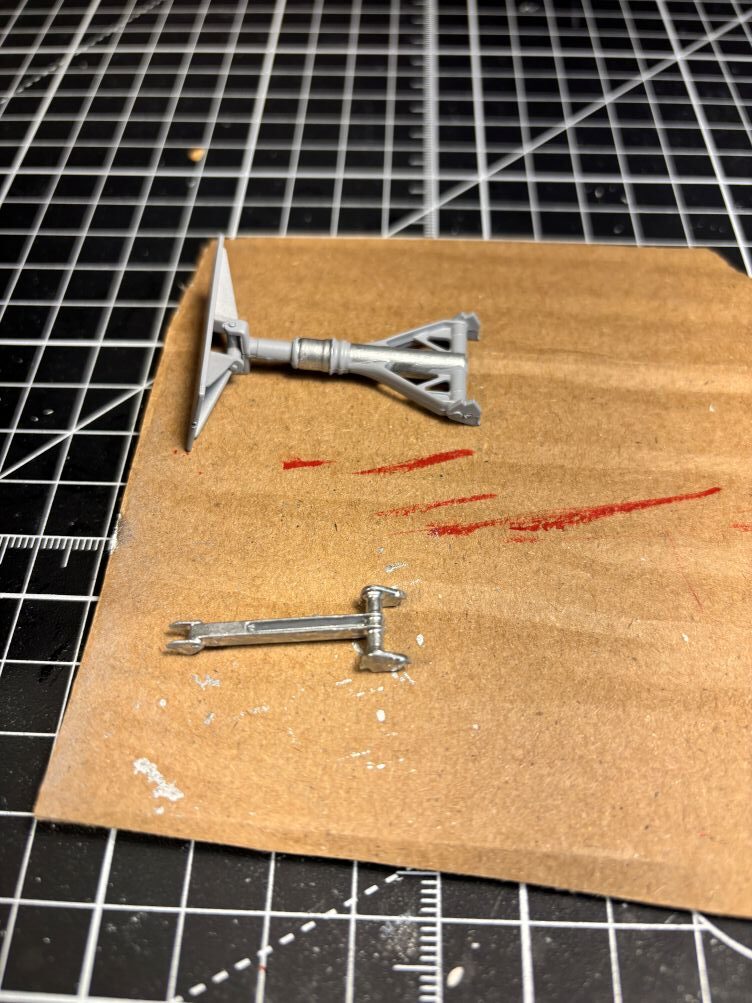

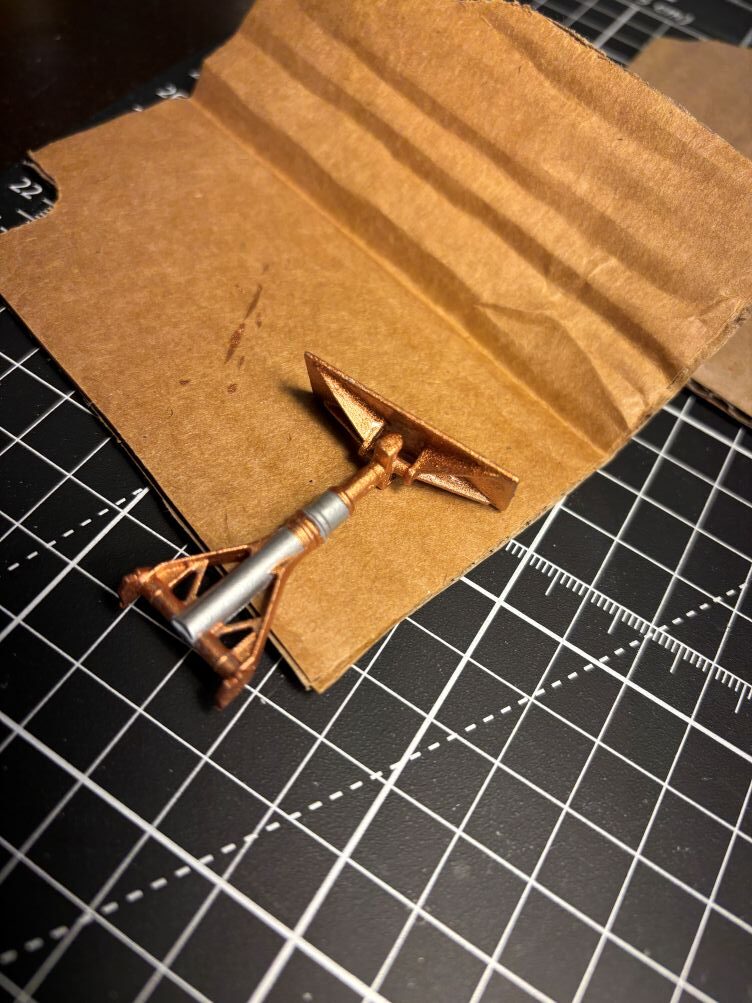

I decided to build the rear landing gear. There is some debate about whether it is visible during flight. In the original broadcasts, it didn’t retract. In the newer remastered Star Trek, with all new effects, this retracted after lift off. I decided to build and attach it, but in the flight version. The bow landing gear is retracted.

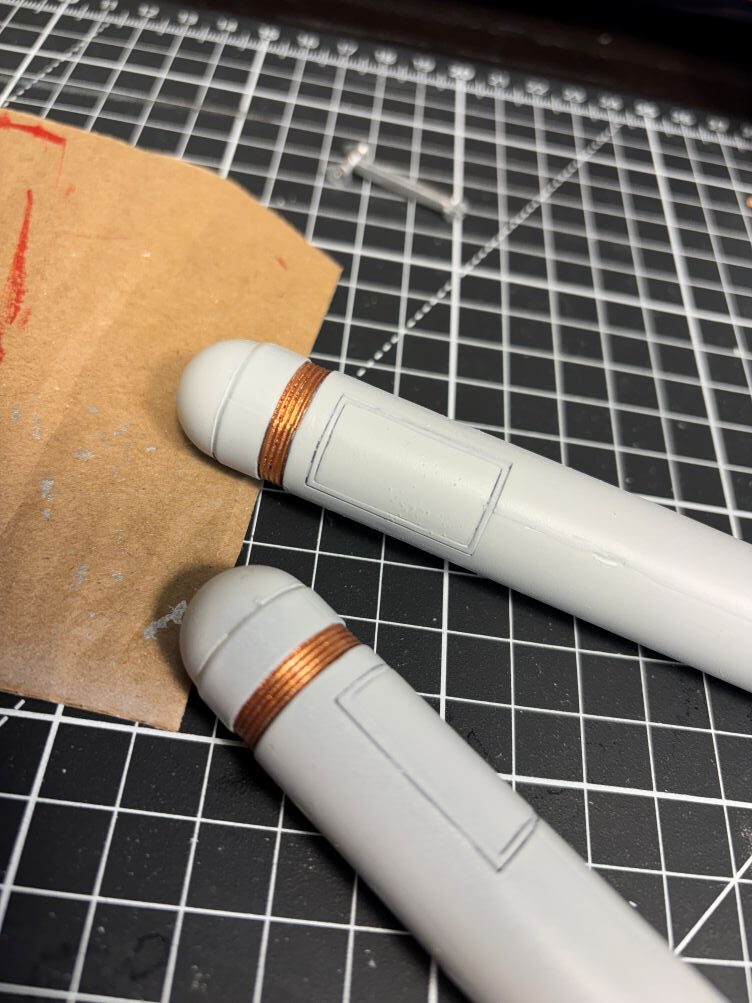

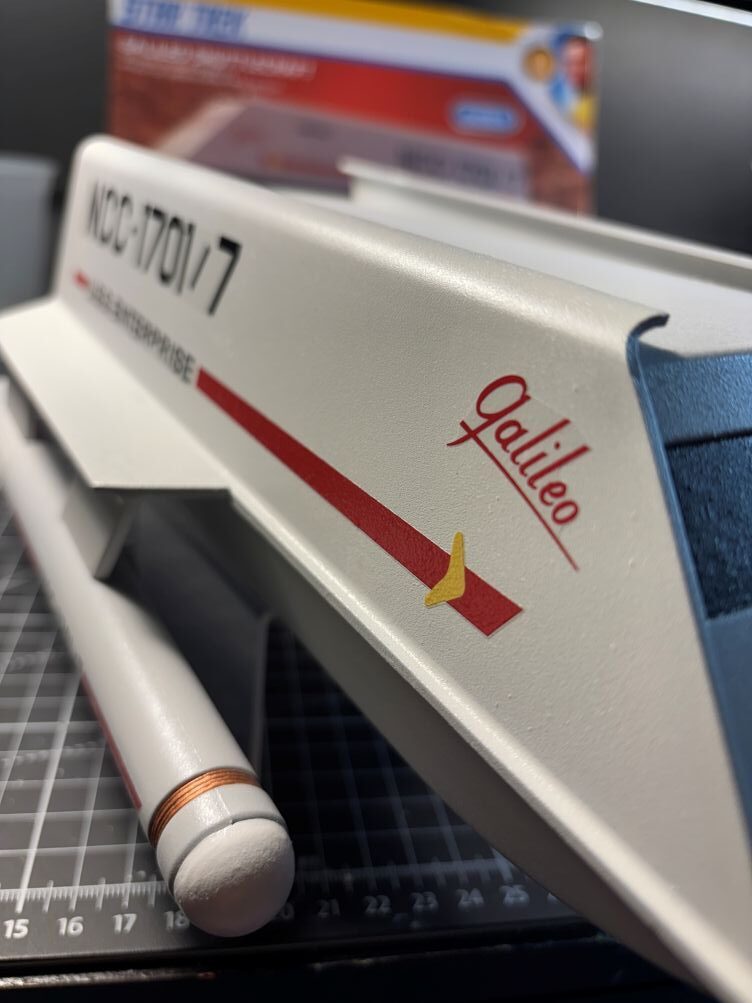

Here are the nacelles. I decided to keep the white domes, but I used copper on the bands just aft of them to match my Enterprise model. For the hull, I used a lighter paint colour than usual for my work. Tamiya spray paints are currently not available in Canada, so I switched to Revell Light Grey.

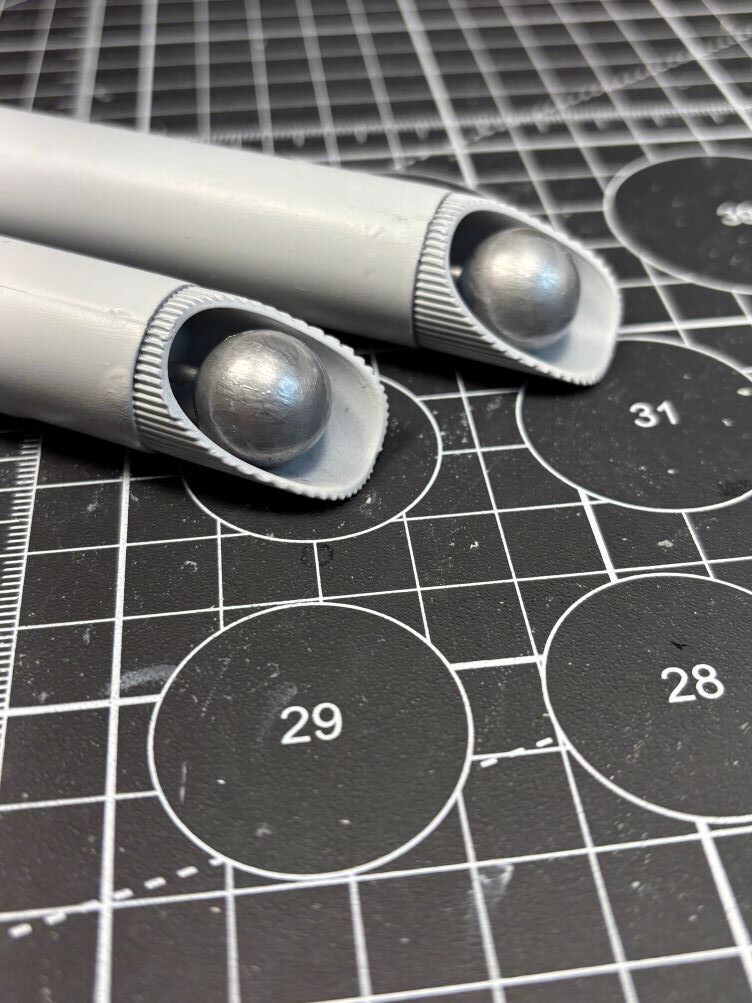

I used metallic silver for the orbs in the warp nacelles:

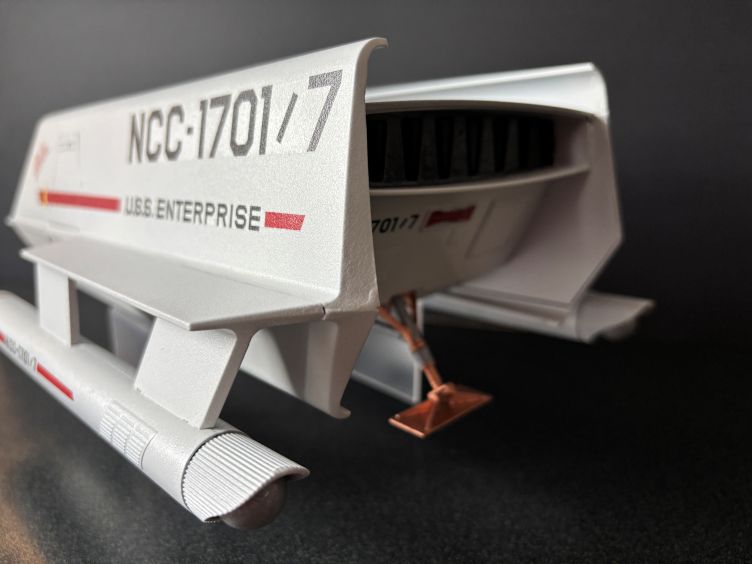

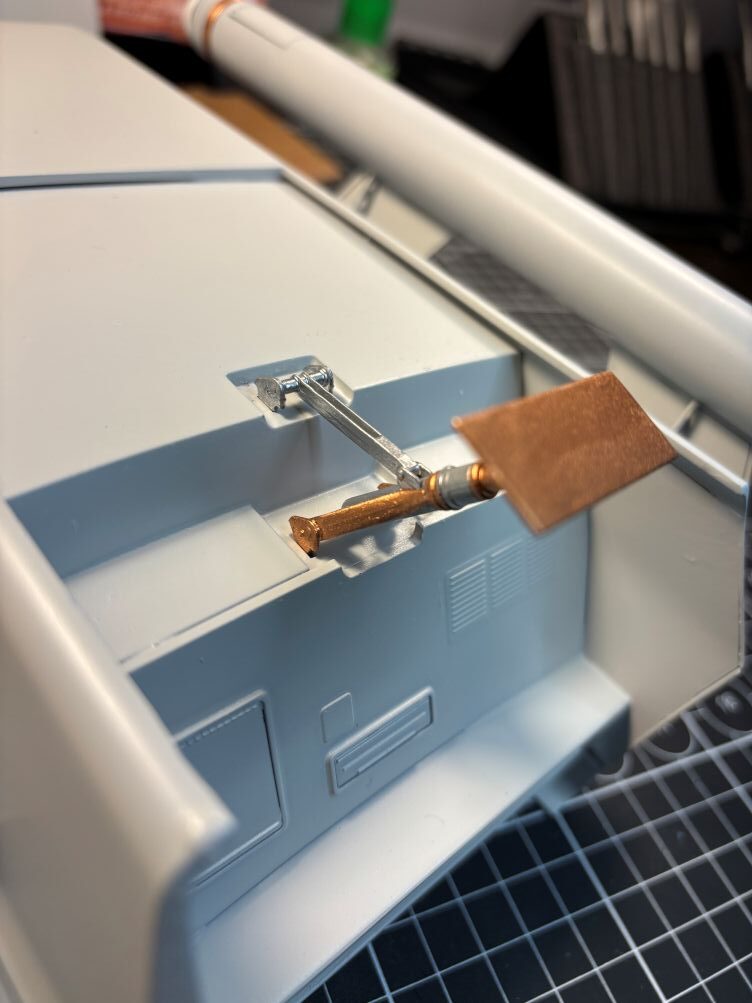

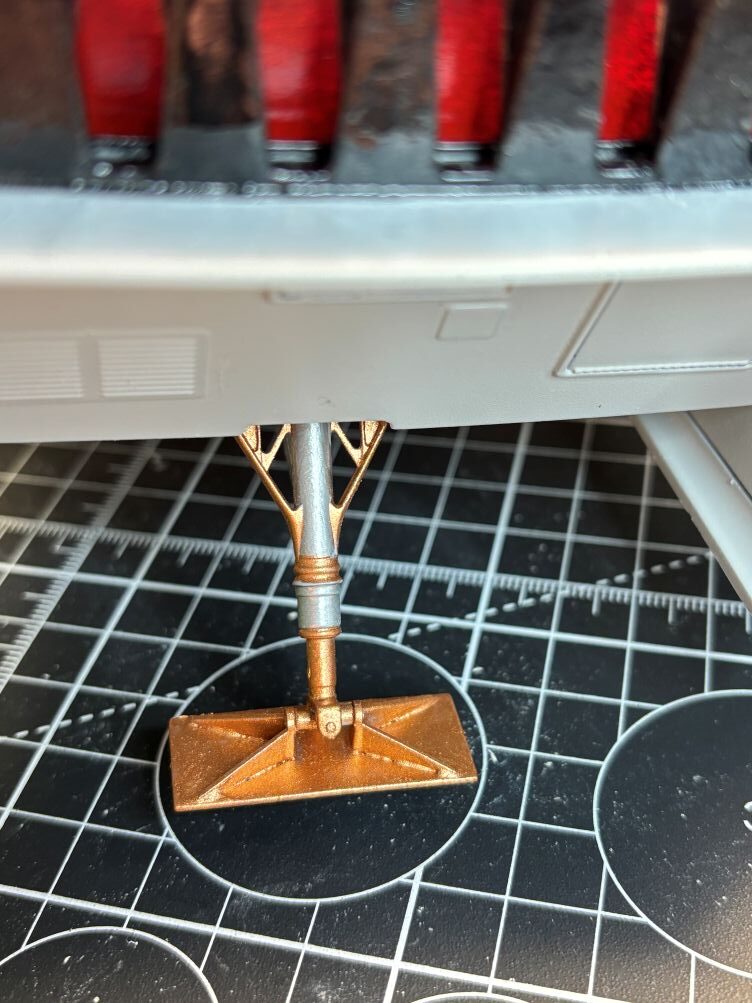

I just love how this landing gear looks.

The silver (Testors) and copper metallic paint (Tamiya) are striking:

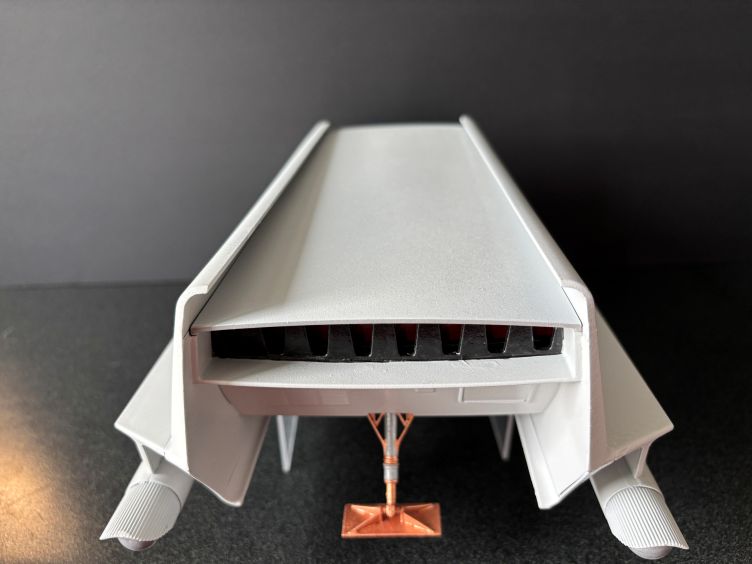

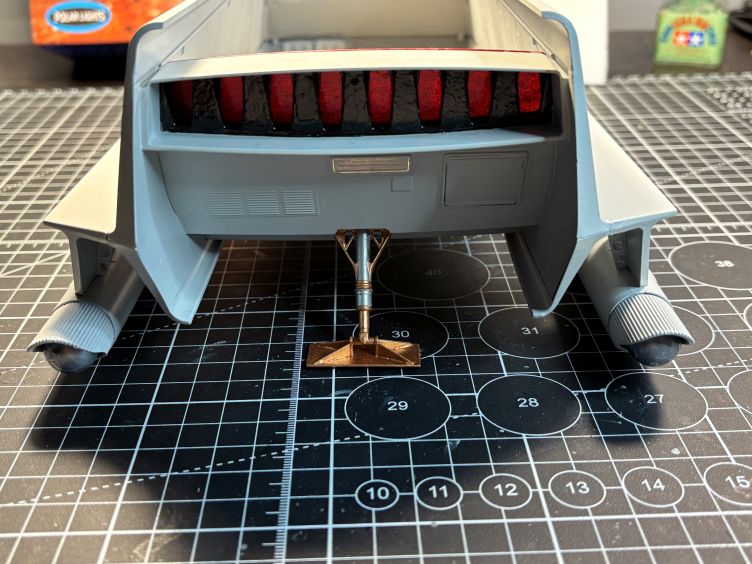

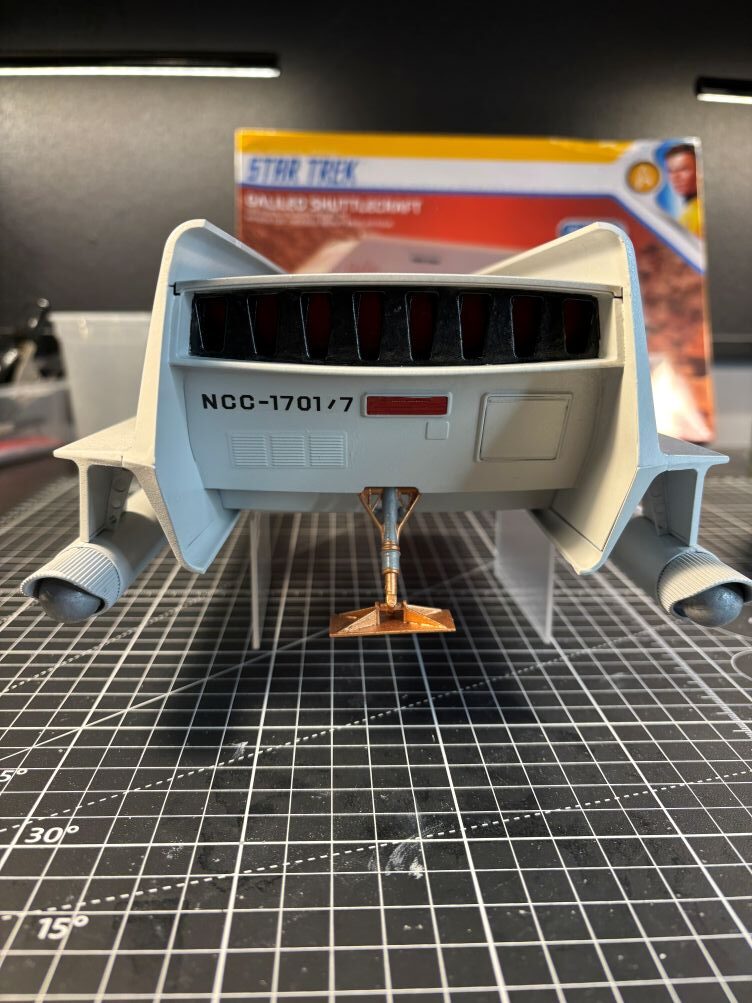

You can see the red impulse engines “glowing” behind the grill.

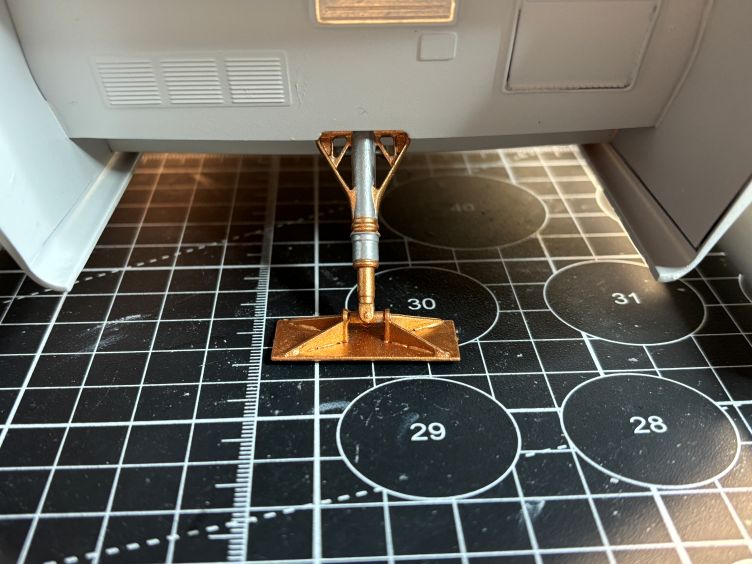

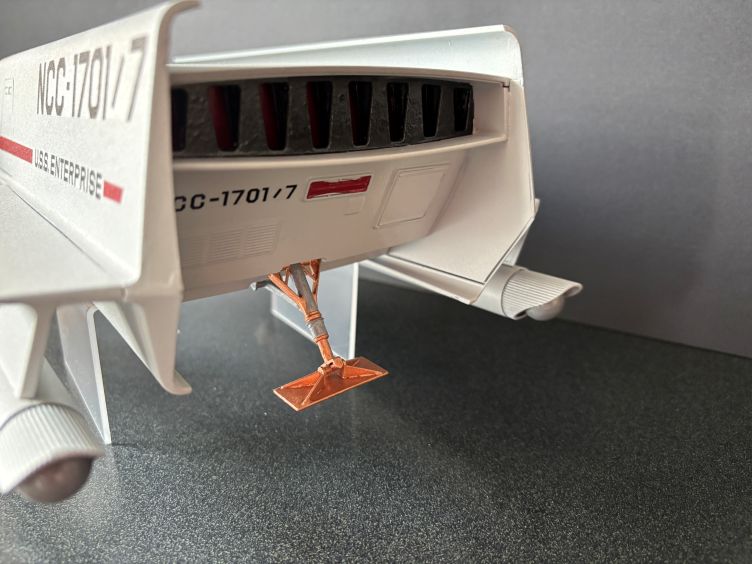

Here’s another view of that landing gear:

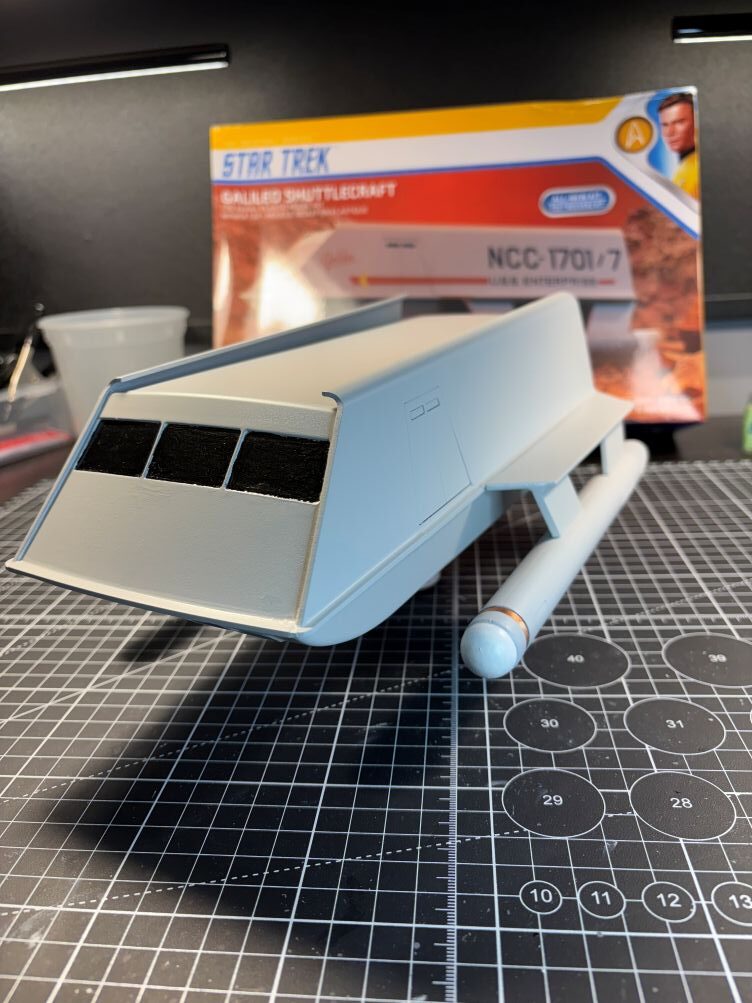

And here she is, ready for the clearcoat spray before applying the decals:

Applying the Decals

After the painting was completed — of the hull and the finer details — I then sprayed with a clearcoat semi-gloss. This helps smooth out imperfections and creates a flat surface for the decals to sit.

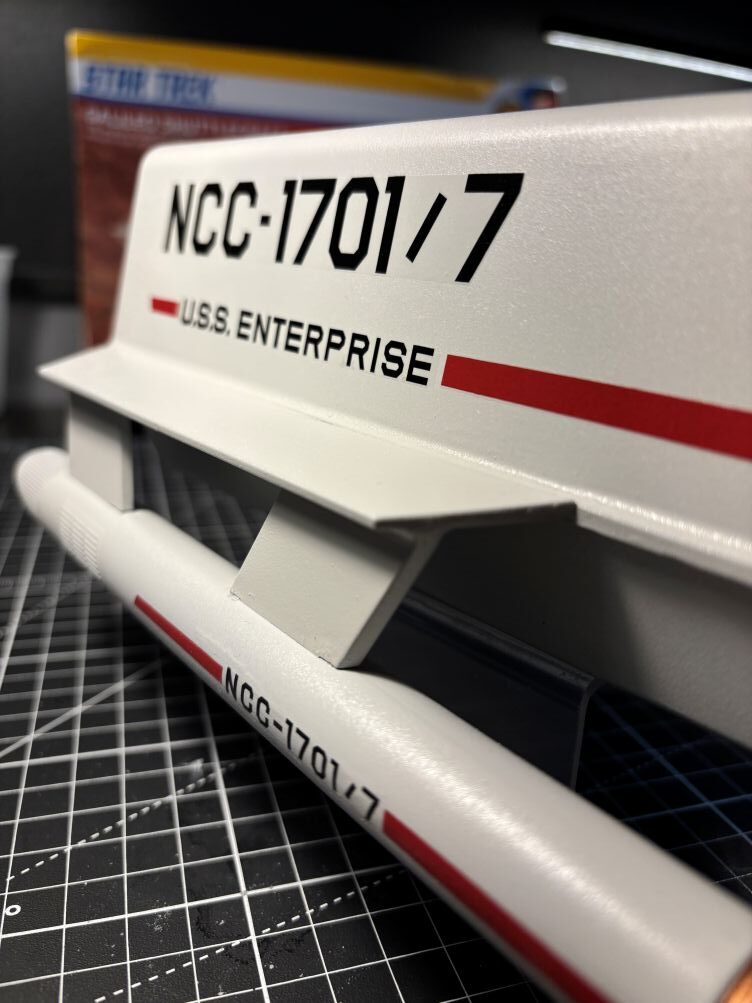

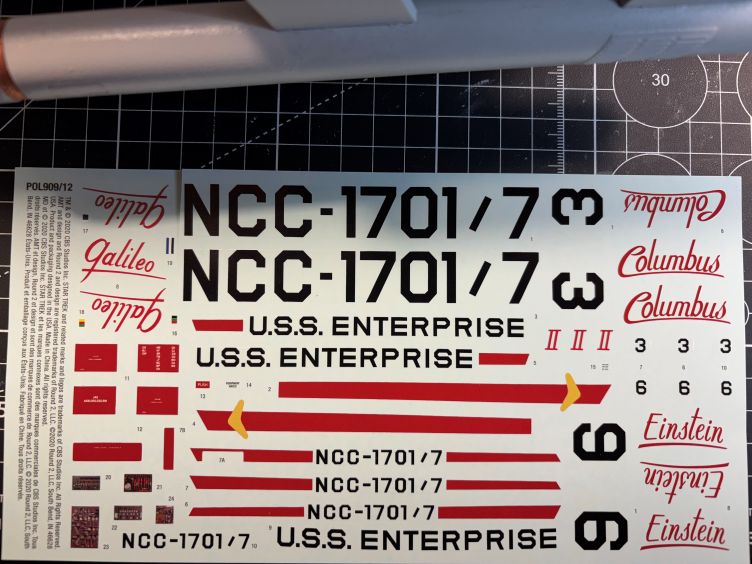

The decal sheet isn’t too extensive. The entire process took two hours. Once again, I used Micro-Set to prepare the area, then Micro-Sol on the decal to help “fuse” it to the hull. Note the added options to also create the Einstein and Columbus.

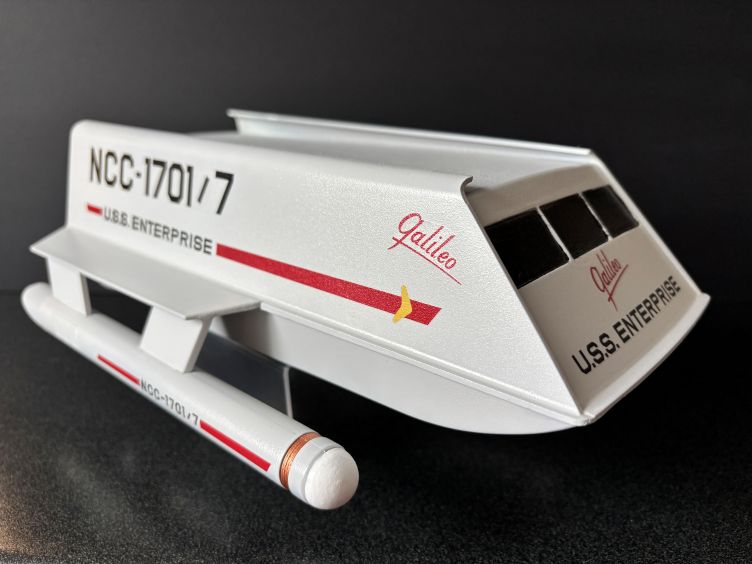

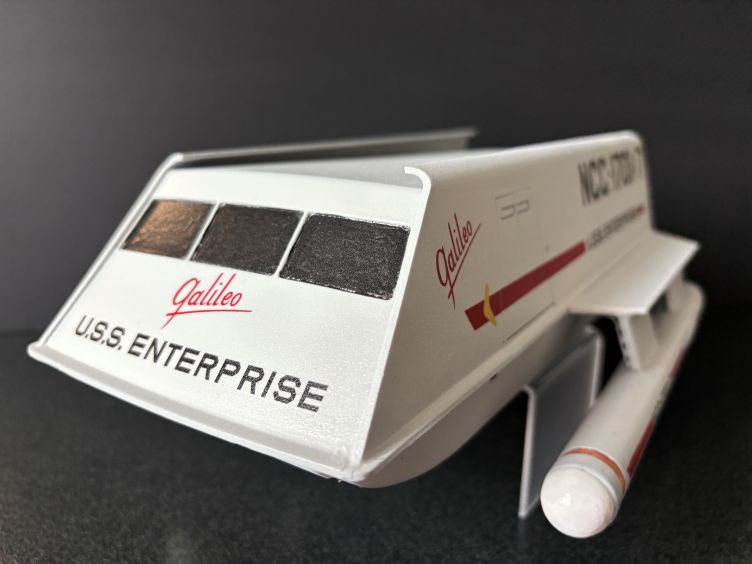

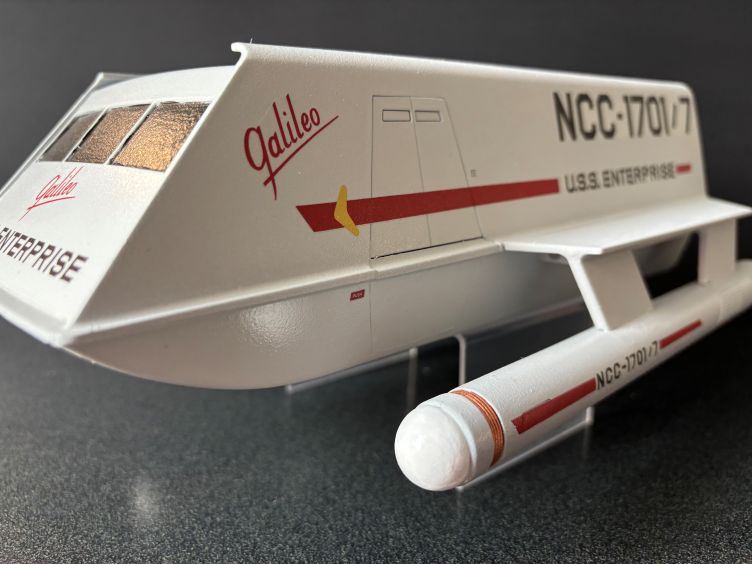

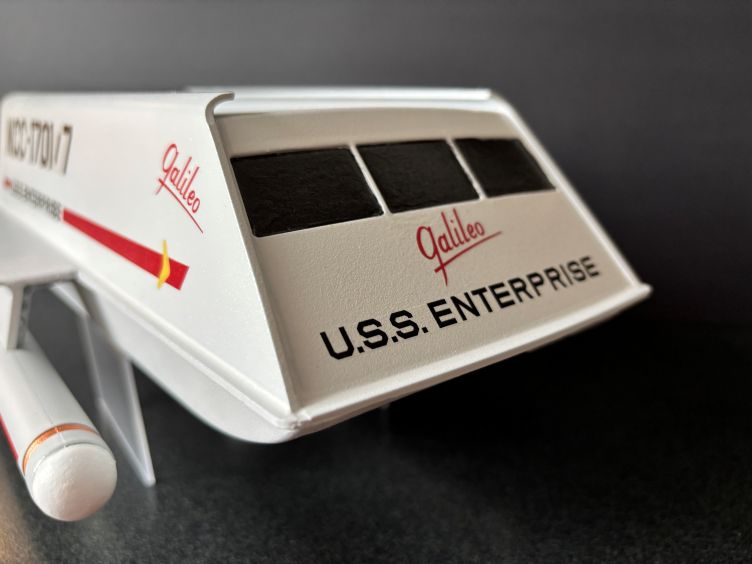

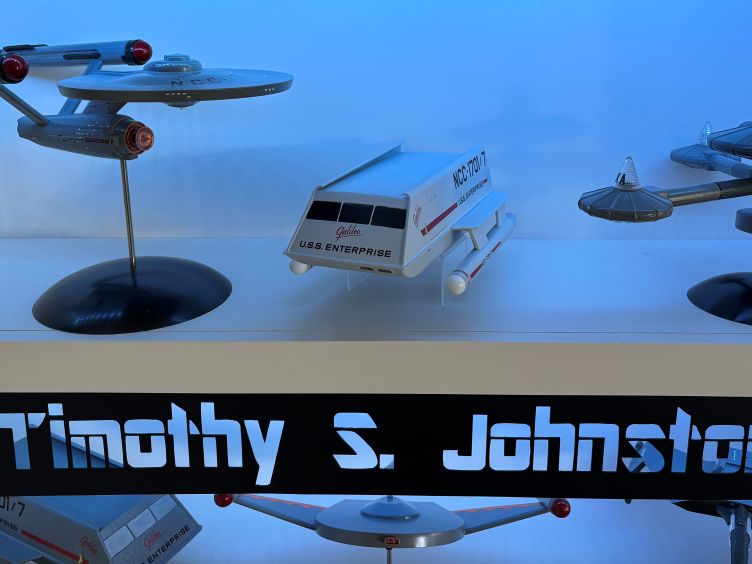

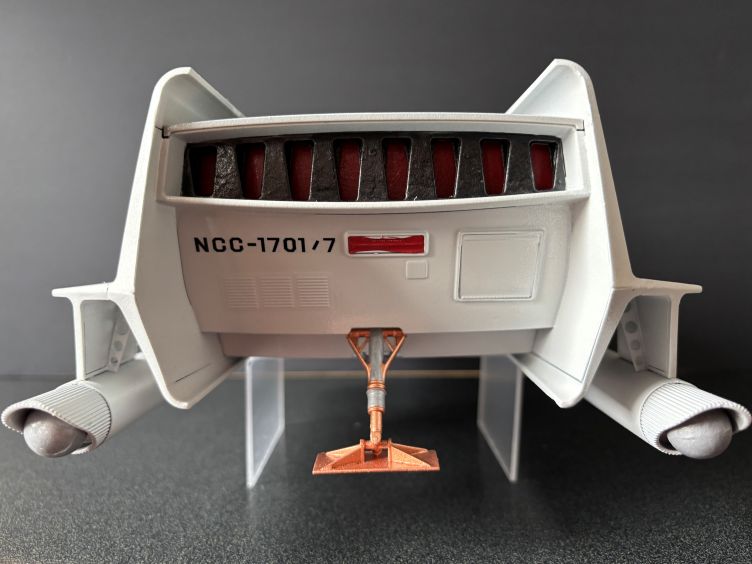

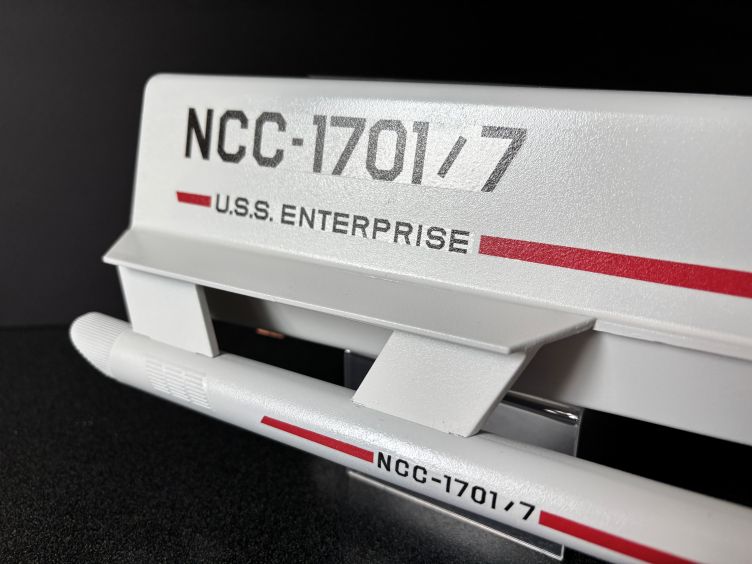

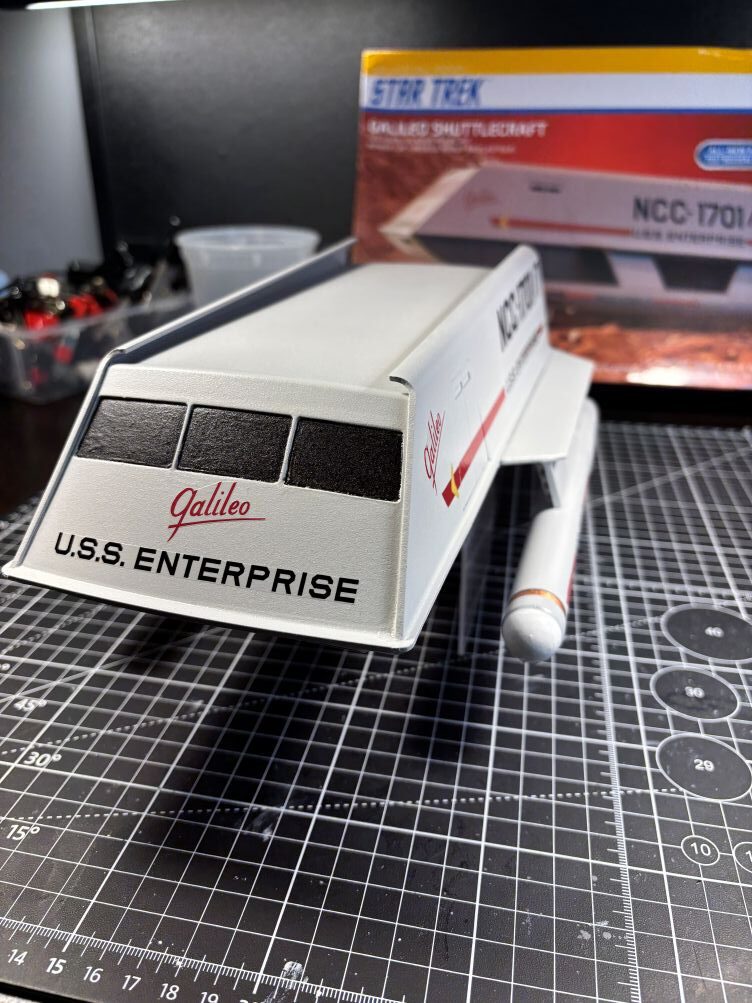

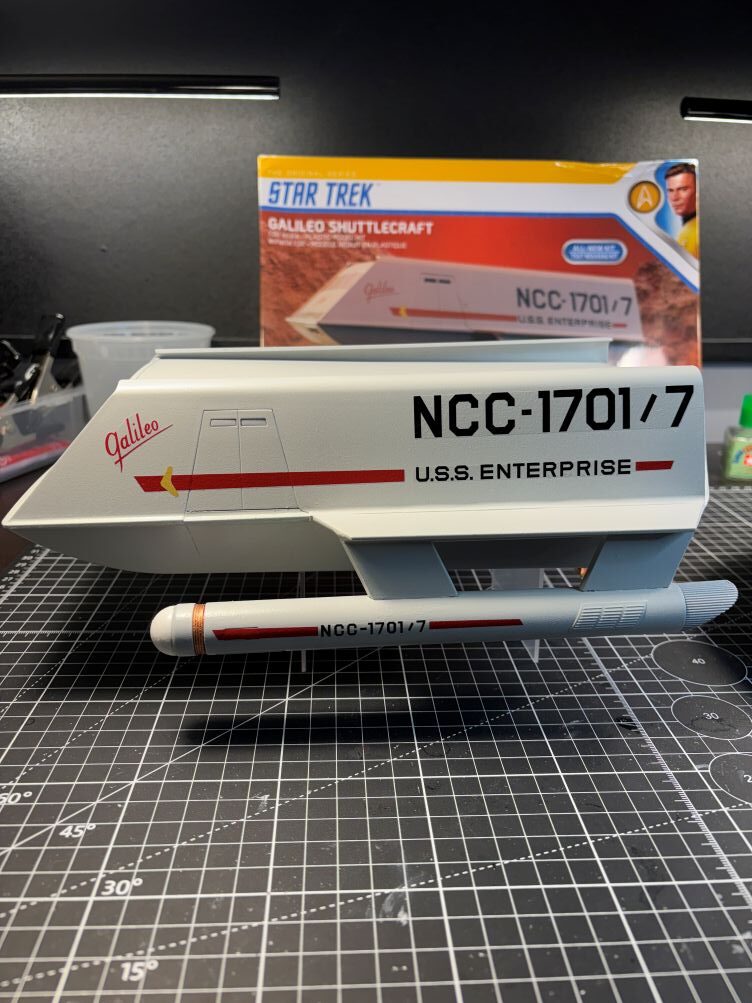

The Final Model: Galileo

Stay tuned for the next Star Trek scale model project on my bench: AMT’s USS Enterprise-E, NCC-1701-E! Watch this space!

———
